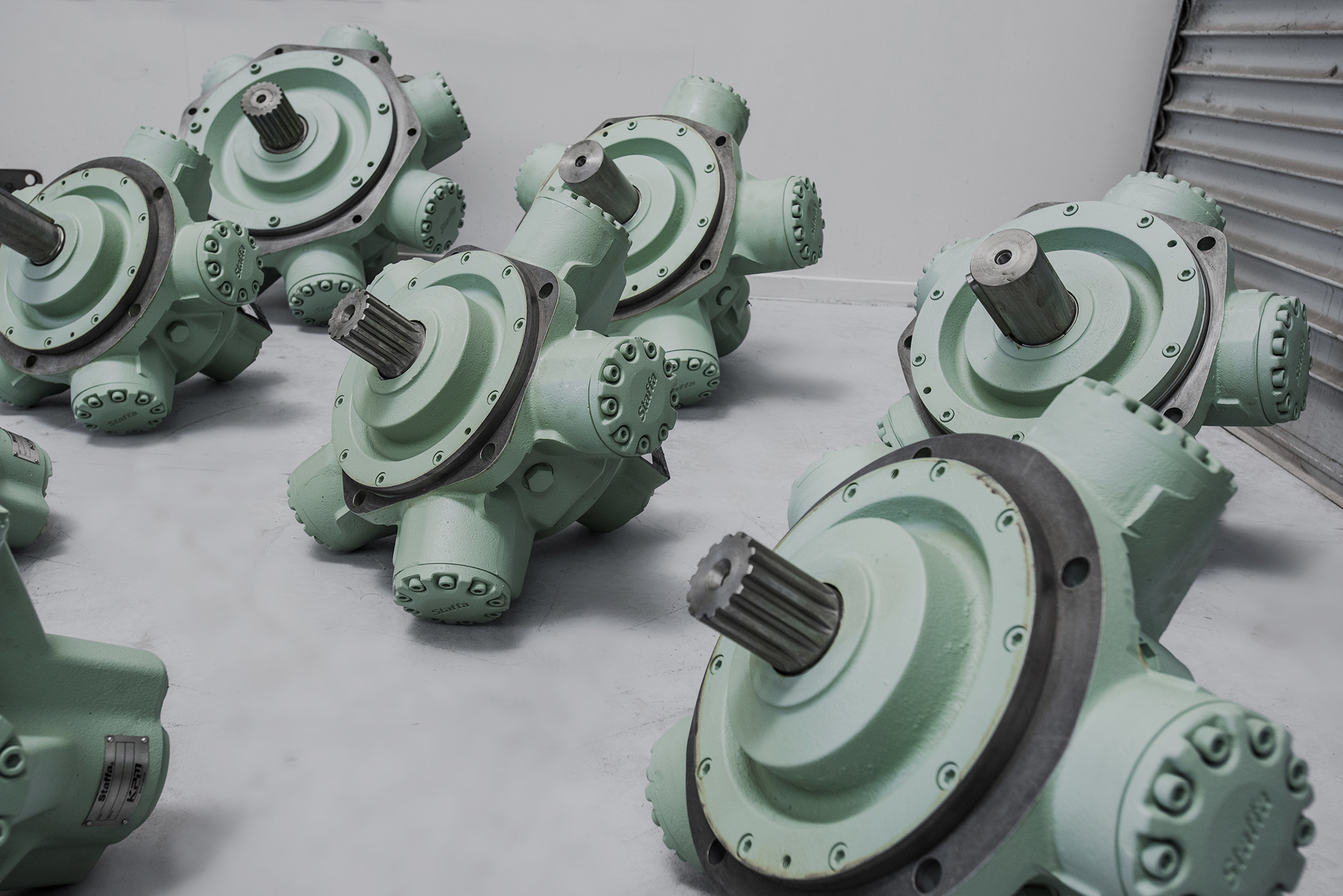

For more than 60 years the Staffa name has been synonymous with the best in class radial piston hydraulic motors. The Staffa product range has continued to develop into fixed, variable and high power versions that provide high-torque, low-speed control to a wide range of applications.
Staffa motors are found in the most arduous marine and industrial applications such as deck machinery, offshore winches, plastic injection moulding machines and drill rigs. The hydraulically balanced construction and Kawasaki’s no-compromise approach to quality result in a motor with levels of reliability unmatched in the market today.
The latest addition to the Staffa range is the HMF 3-speed motor, available in four frame sizes, ranging from 1,475 cc/rev to 5,326 cc/rev. With 3 displacement modes, it is the only motor of its kind currently on the market.

Brand new, straight from the manufacturer in England

HMB Motors

The Kawasaki 'Staffa' HMB range of low speed, high torque fixed displacement radial piston hydraulic motors consists of 13 frame sizes ranging from the HMB010 to HMB700.

  • Features & Options

    • Unique Hydrostatic balancing provides minimum wear and extended life;
    • High volumetric and mechanical efficiency;
    • Capacities range from 50 to 11600 cc per rev;
    • Large variety of Shaft and Porting options;
    • Output torque up to 36000 Nm;
    • Wide range of mounting interfaces available (on request, to match competitors');
    • Highly accurate electronic positional and velocity control systems also available.

  • Models

    • HMB010
    • HMB030
    • HMB045
    • HMB060
    • HMB080
    • HMB100
    • HMB125
    • HMB150
    • HMB200
    • HMB270
    • HMB325
    • HMB700
    • HMBHDB400

  • Download Staffa HMB Datasheet

    Please fill in your email below to access the free PDF

HMC Motors

The Staffa HMC radial piston motors (dual displacement models) have two pre-set displacements which can be chosen from a wide range to suit specific application requirements. The displacements are hydraulically selected by a directional control valve which can either be mounted remotely or directly on the motor. Motor displacement can be changed with ease when the motor is running.

These motors are also available in a continuously variable version using either hydro-mechanical or electro-hydraulic control methods. Various mounting options are available on request to match many competitors' interfaces.

  • Features & Options

    • High torque at low speed;
    • Smooth running;
    • Wide range of displacements to suit specific applications
    • Displacement changes with ease when the motor is running
    • Electro-hydraulic or hydro-mechanical control methods available
    • Various mounting options available
    • Speed sensing options
    • Motor mounted manifold options

  • Models

    • HMC030
    • HMC045
    • HMC080
    • HMC125
    • HMC200
    • HMC270
    • HMC325

  • Download Staffa HMC Datasheet

    Please fill in your email below to access the free PDF

HMF Motors

The HMF three-speed models have three pre-set displacements which can be chosen from a wide range to suit specific application requirements. Motor displacement can be changed with ease while the motor is running.

  • Features & Options

    • 3 displacement modes
    • 1,475 to 5,326 cc displacements in 4 frame sizes
    • Freewheel option available
    • Dymanic displacement change
    • Speed sensing options

  • Download Staffa HMF Datasheet

    Please fill in your email below to access the free PDF

HPC Motors

Staffa HPC radial piston motors are the enhanced version of the standard HMC series motor, includes special low friction components combined with crankcase flushing flow to achieve increased shaft power capability…

Kawasaki Staffa HPC radial piston motors use hydrostatic balancing techniques to achieve high efficiency, combined with good breakout torque and smooth running capability.

The HPC series dual displacement models have two pre-set displacements which can be chosen from a wide range to suit specific application requirements. The displacements are hydraulically selected by a directional control valve which can be remote mounted or directly on the motor. Motor displacement can be changed with ease when the motor is running.

These motors are also available in a continuously variable version using either hydro-mechanical or electro-hydraulic control methods. Other mounting options are also available to match many competitors' interfaces.

The Staffa range of HP motors extends from the HPC080 at 1600cc/rev to the HPC325 of 5326 cc/rev.

  • Features & Options

    • Enhanced power performance
    • Increased speed
    • Improved starting and running efficiency
    • Increased back pressure capability
    • High torques at low speed
    • Smooth running
    • Wide range of displacements to suit specific applications
    • Displacements change with ease when the motor is running

  • Models

    • HPC080
    • HPC125
    • HPC200
    • HPC270
    • HPC325

  • Download Staffa HPC Datasheet

    Please fill in your email below to access the free PDF
